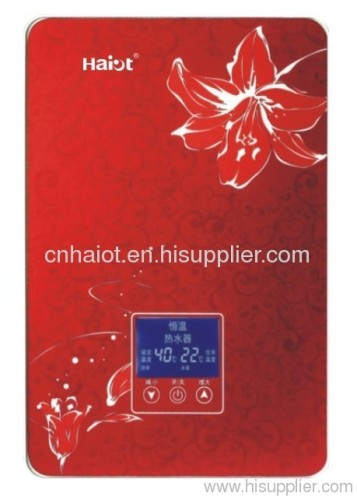

Instant hot water electric water heater
Payment Terms: |
T/T |
Place of Origin: |
Guangdong, China (Mainland) |
Product Detail
Model No.:
CGJR-F2
Production Capacity:
500PCS/Day
Delivery Date:
10days to 30 days
Type:
Tankless
Capacity:
0.2Litre
Voltage:
220V
Capable:
RoHS, UL
Means of Transport:
Ocean,Land,Air
Packing:
inner & master cartons with...
Installation:
Wall Mounted
Brand Name:
Haiot
Power:
7,000W
Certification:
CE, CB,CCC
Use:
Bathroom and commercial pla...
1. perfect temperature setting tankless electric water heater with stainlesss steel heating element 2.offer most comfortable bathing experience
Product Features:
1.Supply hot water in several seconds
2.Fashion design with glass cover
3.Intelligent system and solid self-Inspection function
4.LED display, touch keys
5.Multiple security protections:
dry-heating protection
over-temperature protection
creepage protections
Specifications |
Model No. | CGJR-F2 |
Power | AC220V-7,000W |
Power Control Mode | Constant Temperature Setting |
Current | 0-31.8A |
Wire Size Required | Copper wire 4 mm² to 6mm² |
Waterproof Rate | IPX4 |
Max. Output Temperature | 55℃ |
Max Flow Rate | 0.8GPM |
Input Water Pressure | 0.03~0.65MPa |
Dimension | 380*260*95mm |
Gross Weight | 6KG |
Box and Control Panel |
Body Material | ABS & Glass |
Finish Color | Red |
Display | LED |
Display Codes | Function & Malfunction |
Control Means | Touch Keys |
Water Connection Size | 1/2 inch |
Heating System |
Heat Generator | Stainless Steel Heating Pipe |
Storage Capacity | Tankless |
Energy Efficiency | 97.5% |
Electric Leakage Protection | Bipolar Cut-off & Zero-sequence Transformer |
. | Inlet Insulation wall & Outlet Insulation wall |
. | Heating water insolated from electricity |
. | Grounding |
Over-temperature Protection | 75℃ |
Dry-heating Protection: | 85℃ |
Self-Inspection Function | Yes |
Advanced Water Flow Sensor | Yes |
We developed water heaters about 12 years ago, and have enjoyed pretty good reputation at home and abroad. Our engineering and manufacturing tradition of excellence means you can depend on the performance and reliability of our products. Haiot tankless electric water heaters are 98% efficient and use only the amount of energy necessary to heat the water needed, thus typically result in savings of 15-20% in comparison with electric tank-type water heaters.
